Click
on the thumbnail to see the kit contents
list.
TECH NOTES
Gallery
Su-27

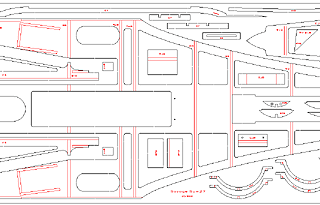

Plans (620K
PDF)
Su-27 Construction Guide
(13.4Mb PDF)
A Typical Flight - Video (21.8Mb
MPEG)
Another Typical Flight - Video (10Mb MPEG)
|
| Kit
Specifications |
| Wingspan: |
36
inches |
| Length: |
56
inches |
|
RTF Weight: |
108
ounces |
| Wing
Area: |
562
sq. in. |
| Wing
Loading: |
28
oz./sq. ft |
Power
& Radio System Requirements
(Not
included) |
| Fan
Unit: |
WeMoTec
Minifan 480 (2) |
| Motor: |
Hacker
B40-7L Brushless (2) |
| Speed
Controller: |
Jeti
Master 70-3P Opto (2) |
| Motor
Batteries: |
3S 4100mAH LIPO (2) |
| Radio
Channels: |
4-6
(Aileron, Elevator, Throttle, Nose Wheel Steering,
Retracts, Flaperons) |
| Receiver: |
Hitec
555 |
| Servos: |
6
- Hitec HS85MG |
| Receiver
Battery: |
1
- 4.8V, 250mAh |
|
|
|
|

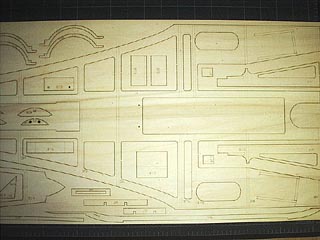

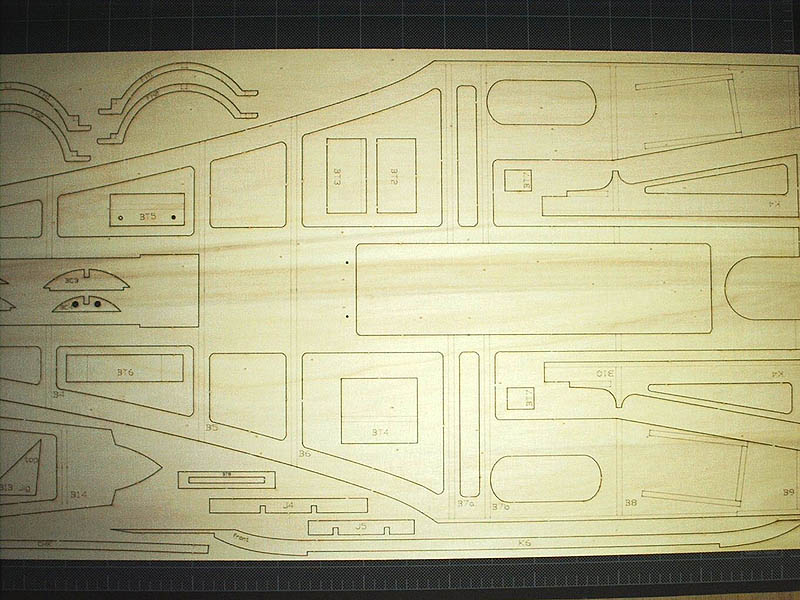

There
are 275 laser cut pieces that comprise the airframe, cockpit
hatch, battery compartment hatch, both fan hatches, retract
mounts, servo mounts, fan mounts, removable battery tray and
all construction and assembly jigs. All of the parts needed
for construction and assembly are here. All laser cut balsa
parts are of the finest grade of balsa available. |
 |

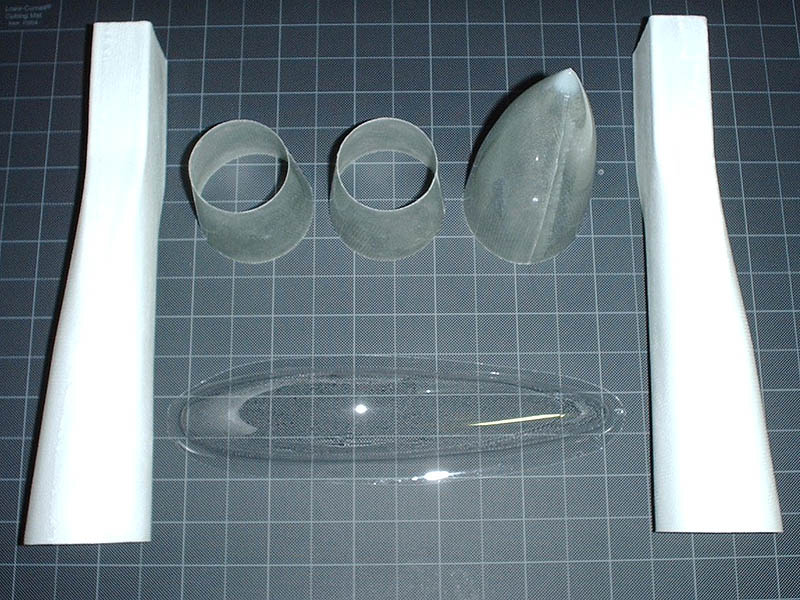

You'll
also get molded fiberglass nose cone, one-piece inlet ducts
and tailcones and a vacuum formed clear canopy. The tailpipes
are rolled from .007" polyester sheet and are included
with the kit.
|
 |

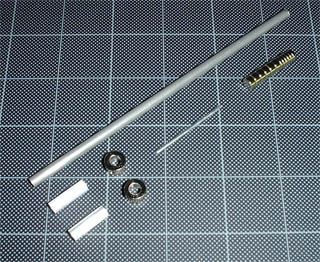

All
pieces needed to build the elevon pivots including the aluminum
tubes, 3/16" rod, 1/16" cross piece and 3/16"
wheel collars are included as are the magnets for the cockpit
and battery compartment hatch hold-downs. |
|
All
fuselage and wing sheeting is of the finest balsa available
and is included with the kit along with all balsa sheet and
strip stock, two-sheet full-size rolled plans
and step-by-step photo illustrated Construction
Guide. |
 |
Cockpit
Kit
More
Information

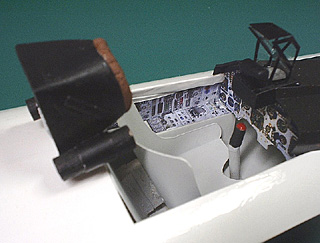

The
Sukhoi Su-27 Cockpit Kit contains everything you need to build
a full depth semi-scale Su-27 cockpit, yet adds less than
an ounce to your finished model's weight (not including pilot).
|
|
 |

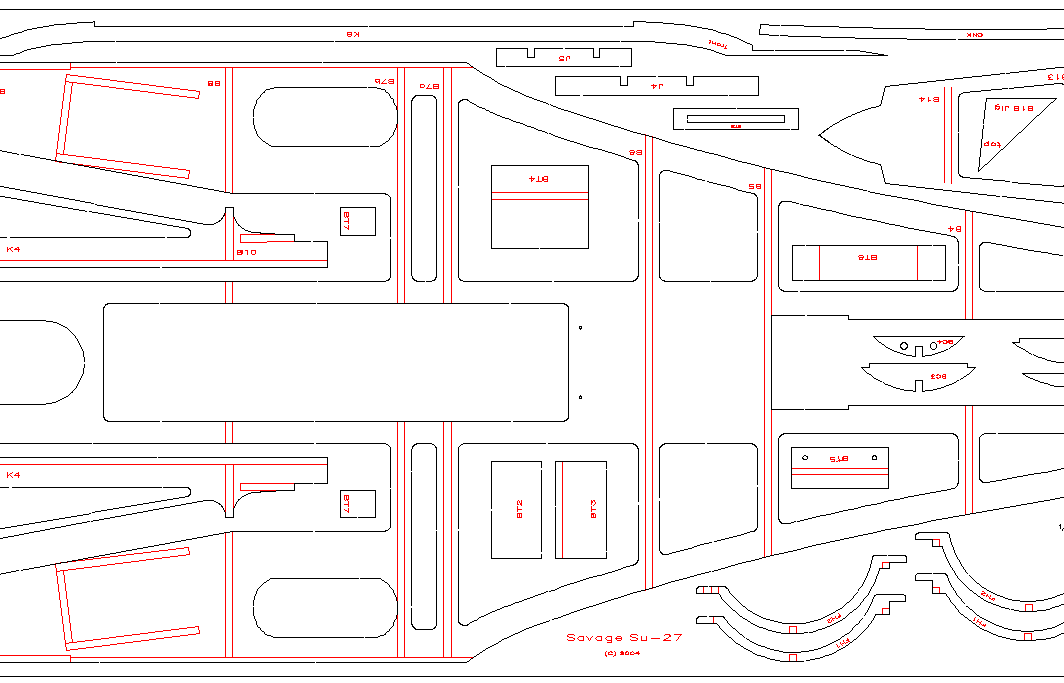

Su-27 Builder's Plans Set:
The complete printed plans set come on three 36" x 60" sheets which include templates for all the cut pieces you'll need to build the kit including the airframe, hatches, mounts and all construction and assembly jigs. The parts are already grouped by wood type and thickness so they're ready to cut. The plans also include a complete bill of materials for additional strip and sheet stock you'll need to complete the model.
|
|
 |
Su-35/Su-37 Conversion Kit
More
Information
Convert your Su-27 Flanker into an Su-35/Su-37 Super Flanker. The conversion kit adds the canards, taller vertical fins and reshaped tail cone while adding only an ounce to the finished weight of the model..
|
