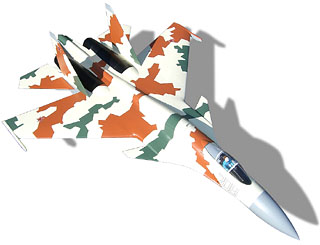

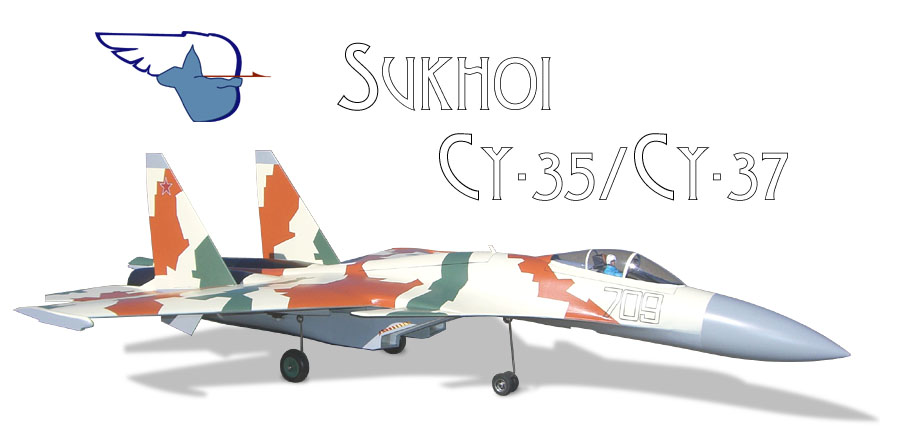

Sukhoi Su-35 Factory Demonstrator
Board #709 Desert Camouflage

Model Built by Dan Savage

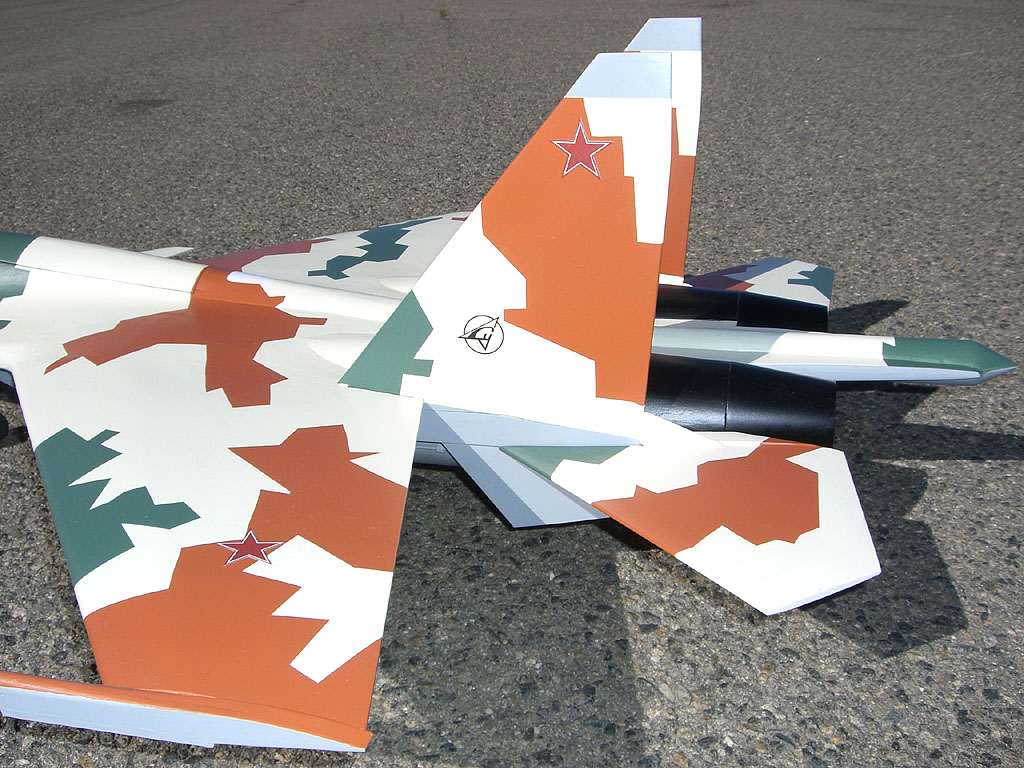

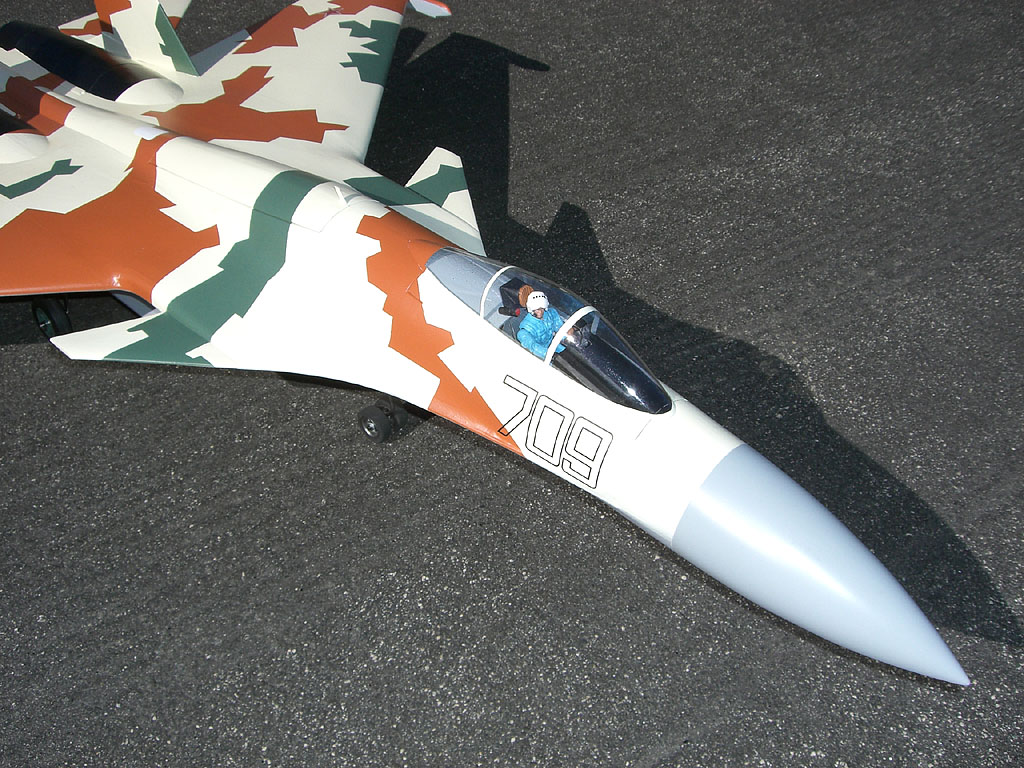

This sub-kit allows you to convert your Savage Light Industries Sukhoi Su-27 Flanker into the Su-35 Super Flanker or the Su-37 Terminator. The conversion kit adds the canards, taller vertical fins and reshaped tail cone while adding only an ounce to the finished weight of the model.


Click on the thumbnail to see the kit contents list.

Photo Gallery

Su-35/Su-37 Conversion Guide (7.2Mb PDF)
Maiden Flight - Video (61.1Mb WMV)

Kit Specifications
Wingspan: 36 inches
Length: 56 inches
RTF Weight: 108 ounces
Wing Area: 562 sq. in.
Wing Loading: 28 oz./sq. ft
Power & Radio System Requirements
(Not included)
Fan Unit: WeMoTec Minifan 480 (2)
Motor: Hacker B40-7L Brushless (2)
Speed Controller: Jeti Master 70-3P Opto (2)
Motor Batteries: 3S 4100mAH LIPO (2)
Radio Channels: 4-6 (Aileron, Elevator, Throttle, Nose Wheel Steering, Retracts, Flaperons)
Receiver: Hitec 555
Servos: 6 - Hitec HS85MG
Receiver Battery: 1 - 4.8V, 250mAh


There are 50 pieces in the laser-cut wood conversion kit that add the distinctive features that define the Su-35 and Su-37 line of aircraft including the canards, taller vertical fins and reshaped tail cone. All of the laser-cut parts needed to convert the Su-27 Flanker to the Su-35 Super Flanker or Su-37 Terminator are here. All laser cut balsa parts are of the finest grade of balsa available.

Each laser-cut wood conversion kit also comes with a printed copy of the 11-page, step-by-step, photo illustrated conversion guide.
