Savage
Light Industries

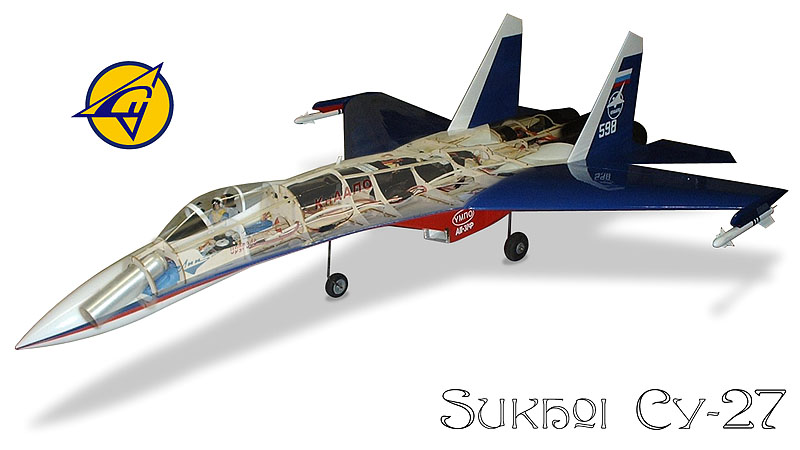

Sukhoi Su-27
Kit Contents |
| |
Printed
Material
|
| 2 |
- |
36"
x 60" Construction Plan Sheet |
| 1 |
- |
Printed
Construction Guide |
| |
|
|
Molded
& Sheet Plastic Parts
|
| 1 |
- |
Port
Inlet Duct (Fiberglass - White) |
| 1 |
- |
Starboard
Inlet Duct (Fiberglass - White) |
| 1 |
- |
Nose
Cone (Fiberglass - Natural) |
| 2 |
- |
Tail
Cones (Fiberglass - Natural) |
| 1 |
- |
Canopy
(PETG - Clear) |
| 2 |
- |
.007"
x 10" x 10" (PETG - Clear, Tailpipes) |
| |
|
|
Metal
Parts
|
| 1 |
- |
3/16"
x 6" Rod (Aluminum, Elevon Pivots) |
| 2 |
- |
7/32"
x 11/16" Tube (Aluminum, Elevon Pivot Bearing) |
| 1 |
- |
1/16"
x 1-1/2" Rod (Aluminum, Elevon Pivot Cross Pin) |
| 2 |
- |
3/16"
Wheel Collar (Elevon Retainer) |
| 2 |
- |
4-40
Grub Screws (Elevon Retainer) |
| 6 |
- |
1/4"
x 1/8" Round Magnets (Hatch Latch) |
| 6 |
- |
1/4"
x 1/6" Round Magnets (Hatch Latch) |
| |
|
|
Laser
Cut Wood
|
| 1 |
- |
1/8"
x 12" x 36" (Lite Ply - Keels) |
| 1 |
- |
1/8"
x 12" x 36" (Lite Ply - Bulkheads) |
| 2 |
- |
1/8"
x 4" x 28" (Lite Ply - Misc.) |
| 2 |
- |
1/8"
x 3" x 12" (Birch Ply - Mounts & Spars) |
| 1 |
- |
1/16"
x 5 x 24" (Birch Ply - Hatches & Actuators) |
| 2 |
- |
1/64"
x 4" x 6" (Birch Ply - Covers) |
| |
|
|
| 2 |
- |
1/4"
x 4" x 12" (Balsa - Inlets & Fillers) |
| 2 |
- |
3/16"
x 3" x 36" (Balsa - Tail Feathers) |
| 2 |
- |
1/8"
x 3" x 36" (Balsa - Missile Rails & Misc.) |
| 1 |
- |
3/32"
x 4" x 18" (Balsa - NACA Scoop & Root Ribs) |
| 2 |
- |
1/16"
x 4" x 24" (Balsa - Wing Ribs & Inlet Lip
Filler) |
| 2 |
- |
1/32"
x 3" x 6" (Balsa - Actuator Pocket) |
| |
|
|
Sheet
& Strip Stock
|
| 10 |
- |
3/32"
x 4" x 36" (Balsa - Fuselage Sheeting) |
| 5 |
- |
1/16"
x 4" x 36" (Balsa - Wing Sheeting) |
| 1 |
- |
3/8"
x 1/2" x 36" (Balsa - Leading Edge) |
| 1 |
- |
1/4"
x 36" Triangle (Balsa - Reinforcement) |
| 10 |
- |
1/8"
x 1/8" x 36" Square (Balsa - Spars & Stringers) |
| 1 |
- |
1/8"
x 1-1/2" Dowel (Hardwood - Hatch Alignment Pins) |
