Savage Light Industries - F-106 Delta Dart

Bicentennial Commemorative, 1976
159th Fighter Interceptor Squadron, Florida Air National Guard

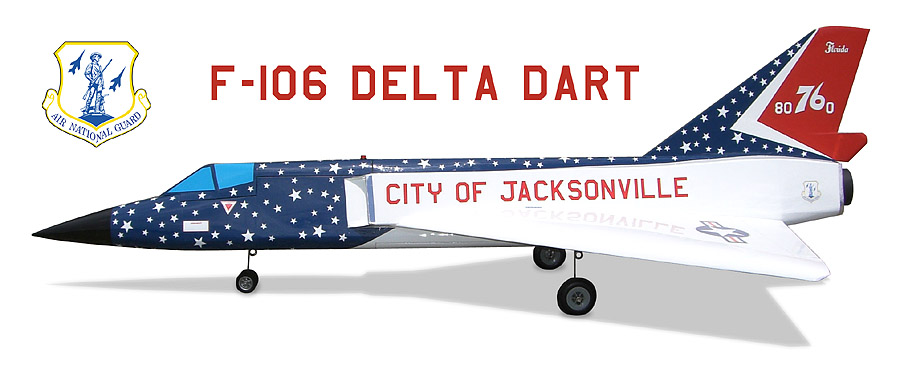

Model Built by Dan Savage

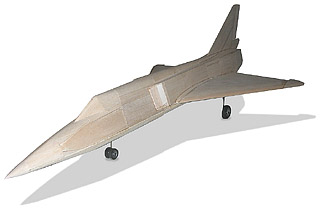

This sport-scale, radio control model airplane kit of the F-106 Delta Dart is based upon Dan Savage's earlier award-winning F-106 design. This version has been updated to improve the fuselage construction and give easy access to the roomy fuselage interior. It features a fully cambered wing with the drooped leading edge that is such a characteristic feature of the F-106 design. The model is designed to use most 650w-800w, 3S LIPO 70mm tractor fans or the new, advanced WM400 pusher fan. It will accept most mini retractable landing gear or you can use a bungee launch system instead.

The inlet ducts and aft fuselage have been simplified to speed construction but sacrifice nothing for performance. The full-flow inlet ducting is area-ruled for maximum efficiency, especially when using the advanced WM400 fan unit.

F-106 Delta Dart Laser-Cut Parts Sub-Kit:
Contact Bob Holman (bhplans@aol.com)

F-106 Delta Dart Plans:
Contact Air Age Store.com (F-106 Delta Dart)

Click on the thumbnail to see the kit contents list.

Photo Gallery

F-106 Plans (700K PDF)

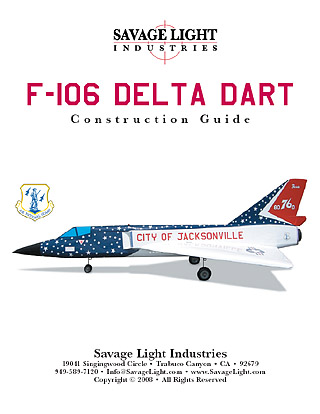

F-106 Construction Guide (12.5Mb PDF)

*Kit Specifications*
Wingspan:	28 inches
Length:	49-1/2 inches
RTF Weight:	48-64 oz.
Wing Area:	390 sq. in.
Wing Loading:	17-32 oz./sq. ft
Power & Radio System Requirements (Not included)
Fan Unit:	70mm tractor or WM400 pusher
Motor:	Neu 1112/1.5D Brushless
Speed Controller:	Castle Creations Phoenix-80
Motor Batteries:	3S1P 4100mAH - 6000mAH
Radio Channels:	3-5 (Aileron, Elevator, Throttle, Nose Wheel Steering, Retracts)
Receiver:	Hitec 555 or 2.4GHz
Servos:	2-4 - Hitec HS82MG
Receiver Battery:	1 - 4.8V, 800mAh NMHD

Each laser-cut wood short kit comes with a 2-sheet printed plans set and a printed 60-page, step-by-step, photo illustrated construction guide.

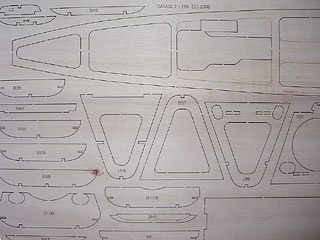

There are over 175 pieces in the laser-cut wood short kit that comprise the airframe, nose gear hatch, battery compartment hatch, fan hatches, retract mounts, servo mounts, fan mount as well as all construction and assembly jigs. All of the laser-cut parts needed to build the model are here. All laser cut balsa parts are of the finest grade of balsa available.

NOTE: The laser-cut wood short kit does not include the wood for the wing tips, fuselage filler blocks or strip and sheet stock. You need to purchase these separately.

(Includes 2-sheet printed plans set and printed construction guide)

If you don't need the 2-sheet printed plans set or the printed construction guide you can order just the laser-cut wood-only sub-kit.

There are over 175 pieces in the laser-cut wood-only sub-kit that comprise the airframe, nose gear hatch, battery compartment hatch, fan hatches, retract mounts, servo mounts, fan mount as well as all construction and assembly jigs. All of the laser-cut parts needed to build the model are here. All laser cut balsa parts are of the finest grade of balsa available.

NOTE: The laser-cut wood-only sub-kit does not include the wood for the wing tips, fuselage filler blocks or strip and sheet stock. You need to purchase these separately.

(Does not include plans or construction guide)

The step-by-step construction guide contains over 160 photos showing every step of the model's construction from the laying of the wing ribs to the gluing and shaping of the nose cone. Keep a printed copy out in the shop while you build the model.

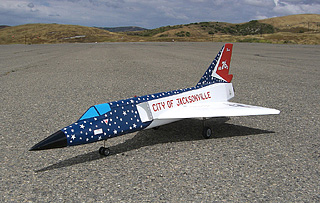

Finish your F-106 in the 159th Fighter Interceptor Squadron Bicentennial paint scheme. The markings set is made up from a combination of cut vinyl and inkjet decals.
